Mounting securely outside so it doesn't get stolen...

Reply
Discussion stats
MikeWilkins
Initiate
Initiate

Yes, these have been up for a couple months now in a less than desirealbe area with no problems.

Nikki198606
Aspirant
Aspirant
How is your cable lock connected to your camera??
techsupporter
Tutor
Tutor
Got the picture. I imagine that setup would deter camera theft. Good idea. Seriously. Now we just need a camera to monitor the camera😉
Sarahsmile
Tutor
Tutor

Not trying to be funny, but you would be able to see who stole it if that happened...I'd recommend having it in a very high spot so it wouldn't be noticed and also be too hard to get to or get close to to see that it is magnetic...just think...would you know it was magnetic if you didn't own it!? You can always keep trying to see what or where the perfect location is by using double sided tape and a few twists and turns before attaching it permanently.

Model: VMC3030 | Arlo Wire-Free Camera
CNY2PA
Aspirant
Aspirant

Can you share a pic of how you secured the light cage? Trying to figure out what kind of base I need to attach the wire light guard.

Model: VMC3030 | Arlo Wire-Free Camera
PaulOckenden
Star
Star

Here's my version:









The tether is steel, sold for GoPro cameras.

I guess it's more of a visual deterrent, as anyone who knows how the mount works can just untwist it!



I'll probably cover the screw head with Sugru or similar.


P.

TomMac
Guru Guru
Guru

Very nice ...kudos given!

--------------------------------------
Morse is faster than texting!
--------------------------------------
TomMac
Guru Guru
Guru

A security screw would fix that too.

--------------------------------------
Morse is faster than texting!
--------------------------------------
jkj1718
Initiate
Initiate

Great idea, what is the link to buy that?  Can you supply the site that selll this?  thanks!

dlevy
Aspirant
Aspirant

Did the wire cage solution work?

ranran
Apprentice
Apprentice

Hrrm.. what length security screw for the camera + a little extra to loop a security cable through?



1/4"-20 x ?

jguerdat
Guru Guru
Guru
The screw threads in the camera are 1/4"-5/16" deep. Add whatever thickness of the cable. I suspect you'll end up with a 1/2" screw.
ranran
Apprentice
Apprentice

Thank you for the information.

RobynA
Tutor
Tutor

i just bought a 2 camera set for my condo. I wanted one for the inside and one to watch what is happening at my front door. I have the following issues...

1.  Unless I m doing something wrong, I have been unsuccessful at getting the front door window camera to detect motion through the window. Anyone have any ideas?



2.  I live on the bottom unit if my camera so if I wanted to actually mount the front window camera outside, someone could steali it or potentially just put their hand over it after they noticed it. BUMMER. I was hoping there was some sort of wire protecting cage I could put over it that has keyed lock or dial lock like the old school bike locks so I coukd easily access the camera to replace the battery.



Hoping then that the camera would at least get a good image of them and alert me before they noticed it and/or put their hand or something else over it.



Robyn

Seattle

ranran
Apprentice
Apprentice

I just got the one camera system last month for testing before I invest in further cameras.



1) I learned both personally and via forums that the motion sense will *not* work through glass.  It needs to be outside to detect motion outside.  Once I put it outside (for testing), it worked quite well (~1-3 second delay in activating camera).  I have also read that a good internet connection is important to minimize this delay.  Alternatively, with the Pro system, you can plug a flash drive in and if internet is not present, it will record to the flash drive.  I wonder if you just put a big flash drive in and unplug the internet from the Arlo, whether this will eliminate the 'net' related motion delay.....



2) As with any camera, security when within reach will always be an issue.  Screwed in?  No problem, the thief could have a screwdrive.  Cable?  No problem, the thief could have wirecutters.  No one around?  Just yank! Any type of security within reach is really more of a deterrent for the casual thief.  I have wrestled with this as 2 of my locations will be within reach....so I have scoured the net for ideas and assembled a set of parts that I think will work reasonably well....  am going to put it together this weekend and see how it goes... 🙂  If it seems to work well, I'll post! 🙂

jguerdat
Guru Guru
Guru

ranran wrote:

Alternatively, with the Pro system, you can plug a flash drive in and if internet is not present, it will record to the flash drive.  I wonder if you just put a big flash drive in and unplug the internet from the Arlo, whether this will eliminate the 'net' related motion delay.....


I don't think so - the video is the same as what's uploaded.  Testing would be needed.




ranran wrote:

2) As with any camera, security when within reach will always be an issue.


Well stated.  The Q cameras use pixel-based motion detection so will work through a window - just make sure to turn off the night vision switch so the IR illuminators won't reflect off the glass.  If needed, normal outdoor lighting can be used instead or consider an IR (850nM) spotlight.  The Q works well in low light so you may not need the extra lighting.



BTW, anyone stealing or covering the camera will likely have their faces videoed prior to being messed with.

ranran
Apprentice
Apprentice

jguerdat wrote:

ranran wrote:

Alternatively, with the Pro system, you can plug a flash drive in and if internet is not present, it will record to the flash drive.  I wonder if you just put a big flash drive in and unplug the internet from the Arlo, whether this will eliminate the 'net' related motion delay.....


I don't think so - the video is the same as what's uploaded.  Testing would be needed.




Yep. check the link - here
If the camera and base station are powered on, but your Internet connection goes down, the camera continues to record to the USB device.



jguerdat
Guru Guru
Guru
Yes but that doesn't address the lag issue.
ranran
Apprentice
Apprentice

jguerdat wrote:
Yes but that doesn't address the lag issue.

I'm surprised - but as I have not tested it, I have no data with which to respond.  I don't have a clear understanding of where the 'lag' comes from.  Is it the camera communicating with the Base station?  Base station connecting to the internet?  Base station establishing Arlo Cloud connection?

jguerdat
Guru Guru
Guru
I haven't actually tested it either but the videos on my thumb drive are the same as from the server. If nothing else, it's the lag caused by waking the camera from sleep.
RobynA
Tutor
Tutor
thanks for the comments. I'm interested in seeing your outdoor mounting options. As with most condos, we have CC&R's to follow for mounting to the building. one person posted this
http://www.webstaurantstore.com/fmp-253-1232-wire-light-bulb-guard-for-hood-globe/3592531232.html

I might give it a try for $6
ranran
Apprentice
Apprentice

I had mentioned a custom ‘security’ option I was developing for my new Arlo camera that is mounted within reach. This is my first attempt, and I’m sure there could be improvements, but I think it satisfies me for now.



After some research, I decided to mount a plate with 3M VHB adhesive to the side of the Arlo through which I would secure a cable with a lock.  After a very helpful phone call with someone from Philadelphia Security Products, I purchased plates, cables, and weatherproof locks (bought 2 as I’ll have 2 cameras within reach, rest will be up higher out of reach).



Purchases



Purchased Items



I then took my trusty dremel, cutting wheel and grinding tool to the plate as shown below.



Dremel

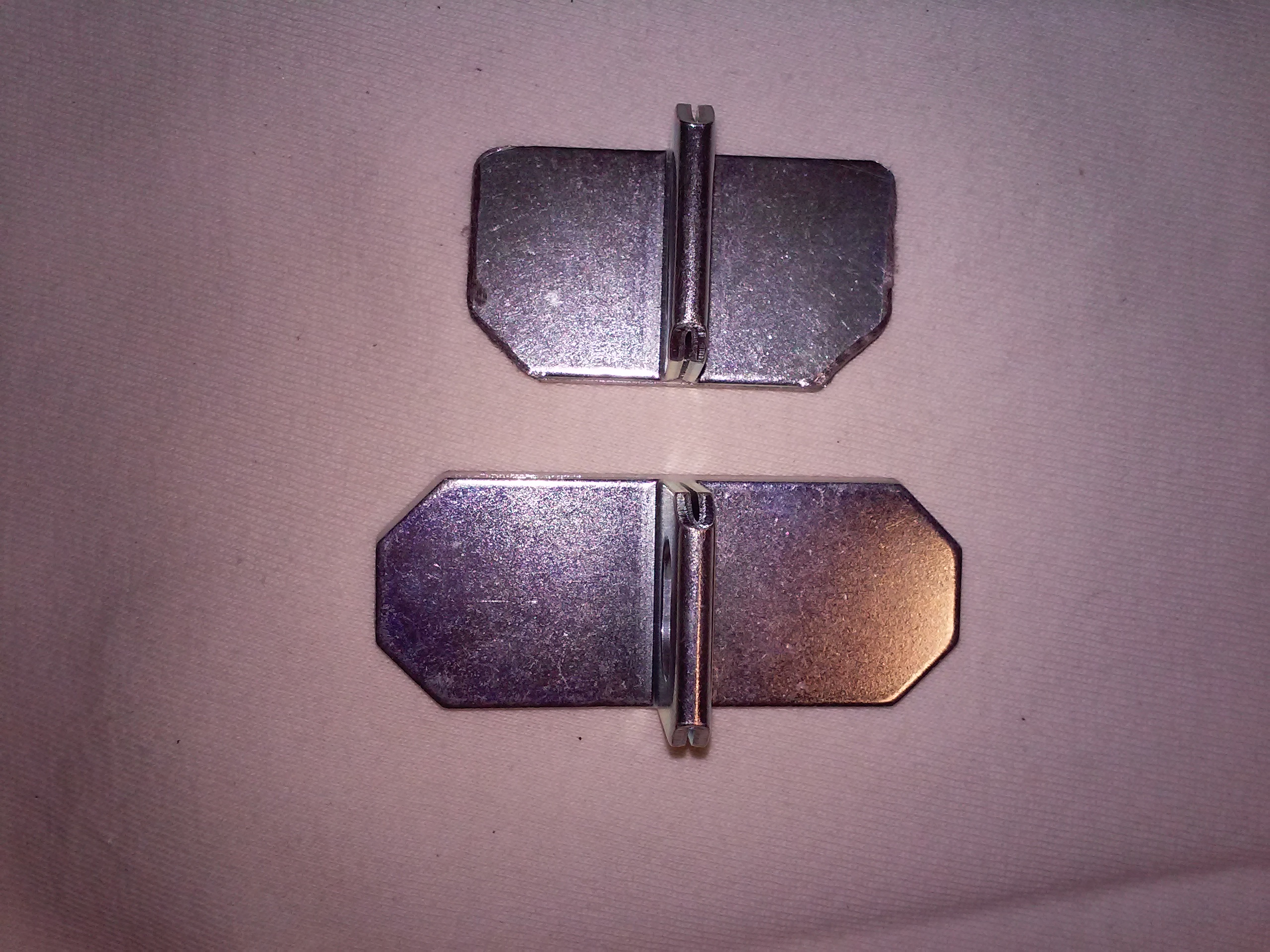

  After cutting/grinding, I was left with this (not an expert, but this'll do... 🙂 ).






The size was cut to match the relatively flat surface on the side of the Arlo’s battery case before it starts curving.  I considered mounting to the body of the camera as opposed to the batter case, but figured if a thief/vandal was going to make the effort to rip off the battery case, then they’ll probably get it off regardless.  I then prepared the case surface with some sandpaper and cleaned it with isopropyl alcohol after scuffing of the case by following the instructions, here (or watch the video). The area I scuffed and to which the plate affixes is lightly outlined in the 2nd pic below.



Surface Prep Materials



 Surface scuff



I peeled off the adhesive protective covering on the plate backing and pressed firmly to attach the plate to the Arlo camera. I then placed a couple of wood blocks on the sides of the plate against the camera with some weight above and left overnight to ensure maximum adhesion of the VHB to the Arlo camera side.

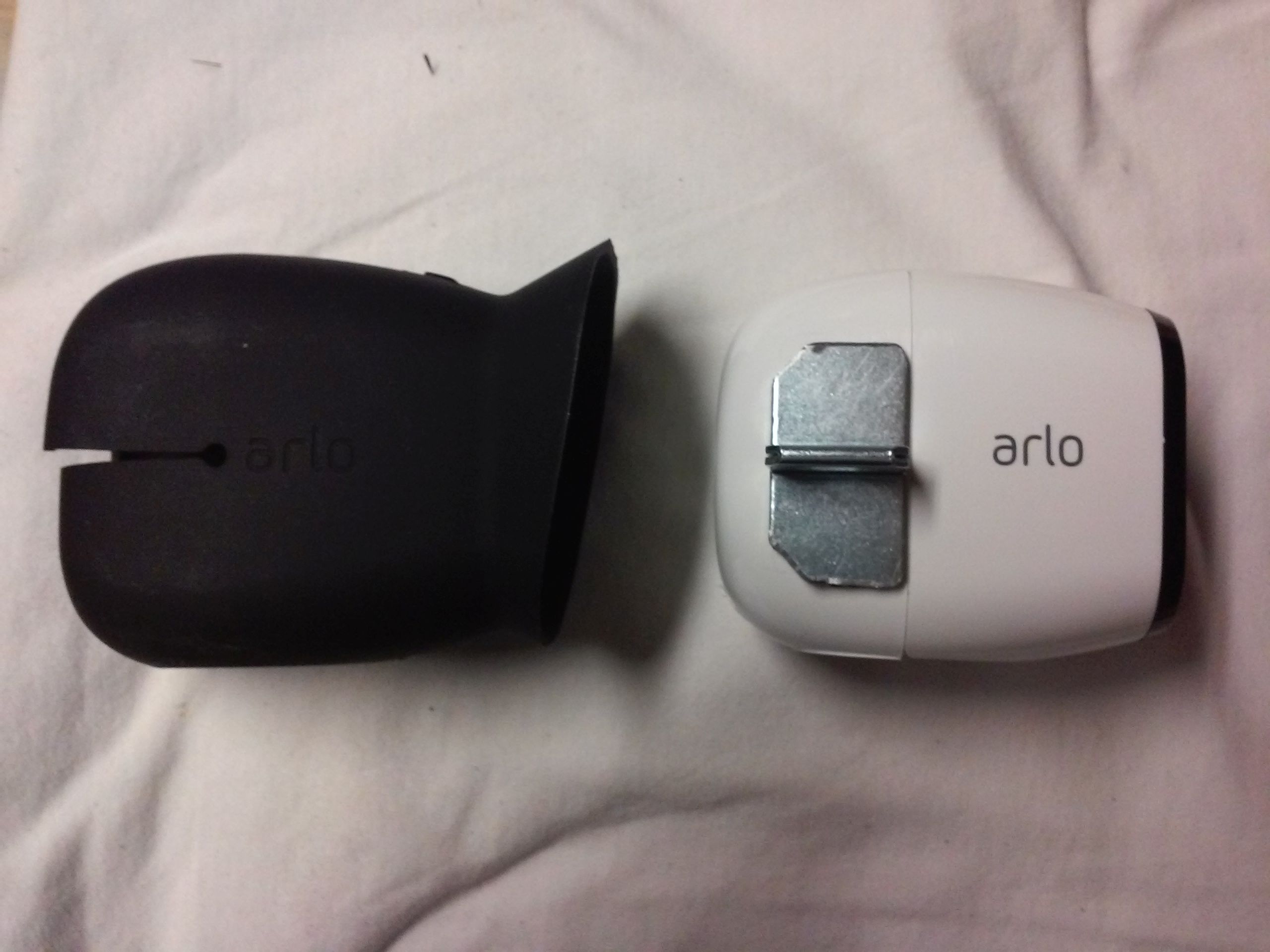

The optional skins that you can purchase for the Arlo have a handy slit in the side, into which the plates eyehole fits perfectly.





The next day, I threaded the cable through the eyehole of the now firmly attached plate, and crimped a loop on the cable end. The cable was fed through some wrought iron grating and locked on with the all-weather Sesamee 45111 lock.  Any all-weather lock will do – I got a somewhat larger one as I was not going to hang it directly on the eyehole of the plate.



Finally, I mounted the Arlo on an all-metal VideoSecu MCB1W mount ($7.50 on Amazon).




I may have to put a clear coat on that camera mount as I’m afraid it may start to rust being outdoors year-round, but for now, it worked just fine.  I like the multiple custom length fittings and the steel ball to optimally rotate and position the camera angle before securing.



Well, I’m sure there are many other (& probably better) ways of lightly securing the Arlo, but this is what I came up with first time around. Total prep time was only about an hour (mostly to Dremel the plate). If you’ve got suggestions or ideas for mounting my 2nd camera, by all means, reply and let me know!



I think this will serve as a reasonable deterrent; it won’t prevent anyone determined, but the casual thief will have a hard time getting this off.

Model: VMC4030| Arlo Pro Wire-Free Camera
RobynA
Tutor
Tutor

This sounds great. Only the links we worked but not the photos, BUMMER! Could you send this to me in an email? Maybe the photos will open then.  Dying to see the final product but hard to grasp since no photos were viewable.



Thanks Robyn





ranran
Apprentice
Apprentice

RobynA wrote:

This sounds great. Only the links we worked but not the photos, BUMMER! Could you send this to me in an email? Maybe the photos will open then. Rarmani1@yahoo.com. Dying to see the final product but hard to grasp since no photos were viewable.



Thanks Robyn






not sure why the photos won't display for you - I can see them fine on my computer...can anyone else?



I sent you a PM with a photo - let's see if you can open that one...

jguerdat
Guru Guru
Guru
Pictures and videos inserted into a post have to be approved before being seen by us mortals. You wouldn't like a shock of some gross porn, would you? 🙂
